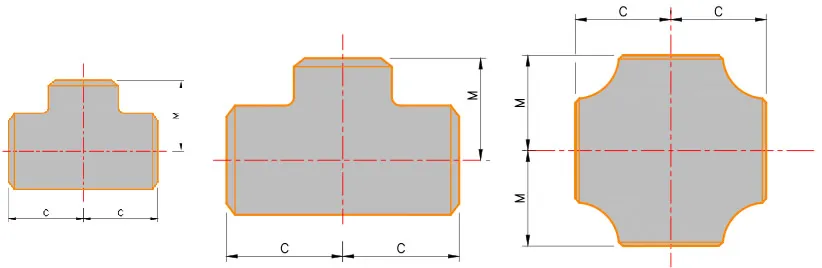

TEE TECHNICAL DETAILS
| DN / NPS (Inch) | OD at Bevel | RUN | OUTLET | |
|---|---|---|---|---|
| Run | Outlet | C | M | |
| 2 x 2 x 2 | 60.3 | 60.3 | 64 | 64 |
| 2 x 2 x 1.5 | 60.3 | 48.3 | 64 | 60 |
| 2 x 2 x 1.25 | 60.3 | 42.2 | 64 | 57 |
| 2 x 2 x 1 | 60.3 | 33.4 | 64 | 51 |
| 2 x 2 x 0.75 | 60.3 | 26.7 | 64 | 44 |
| 2.5 x 2.5 x 2.5 | 73.0 | 73.0 | 76 | 76 |
| 2.5 x 2.5 x 2 | 73.0 | 60.3 | 76 | 70 |
| 2.5 x 2.5 x 1.5 | 73.0 | 48.3 | 76 | 67 |
| 2.5 x 2.5 x 1.25 | 73.0 | 42.2 | 76 | 64 |
| 2.5 x 2.5 x 1 | 73.0 | 33.4 | 76 | 57 |
| 3 x 3 x 3 | 88.9 | 88.9 | 86 | 86 |
| 3 x 3 x 2.5 | 88.9 | 73.0 | 86 | 83 |
| 3 x 3 x 2 | 88.9 | 60.3 | 86 | 76 |
| 3 x 3 x 1.5 | 88.9 | 48.3 | 86 | 73 |
| 3 x 3 x 1.25 | 88.9 | 42.2 | 86 | 70 |
| 3.5 x 3.5 x 3.5 | 101.6 | 101.6 | 95 | 95 |
| 3.5 x 3.5 x 3 | 101.6 | 88.9 | 95 | 92 |
| 3.5 x 3.5 x 2.5 | 101.6 | 73.0 | 95 | 89 |
| 3.5 x 3.5 x 2 | 101.6 | 60.3 | 95 | 83 |
| 3.5 x 3.5 x 1.5 | 101.6 | 48.3 | 95 | 79 |
| 4 x 4 x 4 | 114.3 | 114.3 | 105 | 105 |
| 4 x 4 x 3.5 | 114.3 | 101.6 | 105 | 102 |
| 4 x 4 x 3 | 114.3 | 88.9 | 105 | 98 |
| 4 x 4 x 2.5 | 114.3 | 73.0 | 105 | 95 |
| 4 x 4 x 2 | 114.3 | 60.3 | 105 | 89 |
| 4 x 4 x 1.5 | 114.3 | 48.3 | 105 | 86 |
| 5 x 5 x 5 | 141.3 | 141.3 | 124 | 124 |
| 5 x 5 x 4 | 141.3 | 114.3 | 124 | 117 |
| 5 x 5 x 3.5 | 141.3 | 101.6 | 124 | 114 |
| 5 x 5 x 3 | 141.3 | 88.9 | 124 | 111 |
| 5 x 5 x 2.5 | 141.3 | 73.0 | 124 | 108 |
| 5 x 5 x 2 | 141.3 | 60.3 | 124 | 105 |
| 6 x 6 x 6 | 168.3 | 168.3 | 143 | 143 |
| 6 x 6 x 5 | 168.3 | 141.3 | 143 | 137 |
| 6 x 6 x 4 | 168.3 | 114.3 | 143 | 130 |
| 6 x 6 x 3.5 | 168.3 | 101.6 | 143 | 127 |
| 6 x 6 x 3 | 168.3 | 88.9 | 143 | 124 |
| 6 x 6 x 2.5 | 168.3 | 73.0 | 143 | 121 |
| 8 x 8 x 8 | 219.1 | 219.1 | 178 | 178 |
| 8 x 8 x 6 | 219.1 | 168.3 | 178 | 168 |
| 8 x 8 x 5 | 219.1 | 141.3 | 178 | 162 |
| 8 x 8 x 4 | 219.1 | 114.3 | 178 | 156 |
| 8 x 8 x 3.5 | 219.1 | 101.6 | 178 | 152 |
| 10 x 10 x 10 | 273.1 | 273.1 | 216 | 216 |
| 10 x 10 x 8 | 273.0 | 219.1 | 216 | 203 |
| 10 x 10 x 6 | 273.0 | 168.3 | 216 | 194 |
| 10 x 10 x 5 | 273.0 | 141.3 | 216 | 191 |
| 10 x 10 x 4 | 273.0 | 114.3 | 216 | 184 |
| 12 x 12 x 12 | 323.8 | 323.8 | 254 | 254 |
| 12 x 12 x 10 | 323.8 | 273.0 | 254 | 241 |
| 12 x 12 x 8 | 323.8 | 219.1 | 254 | 229 |
| 12 x 12 x 6 | 323.8 | 168.3 | 254 | 219 |
| 12 x 12 x 5 | 323.8 | 141.3 | 254 | 216 |
| 14 x 14 x 14 | 355.6 | 355.6 | 279 | 279 |
| 14 x 14 x 12 | 355.6 | 323.8 | 279 | 270 |
| 14 x 14 x 10 | 355.6 | 273.0 | 279 | 257 |
| 14 x 14 x 8 | 355.6 | 219.1 | 279 | 248 |
| 14 x 14 x 6 | 355.6 | 168.3 | 279 | 238 |
| 16 x 16 x 16 | 406.4 | 406.4 | 305 | 305 |
| 16 x 16 x 14 | 406.4 | 355.6 | 305 | 305 |
| 16 x 16 x 12 | 406.4 | 323.8 | 305 | 295 |
| 16 x 16 x 10 | 406.4 | 273.0 | 305 | 283 |
| 16 x 16 x 8 | 406.4 | 219.1 | 305 | 273 |
| 16 x 16 x 6 | 406.4 | 168.3 | 305 | 264 |
| 18 x 18 x 18 | 457.2 | 457.2 | 343 | 343 |
| 18 x 18 x 16 | 457.0 | 406.4 | 343 | 330 |
| 18 x 18 x 14 | 457.0 | 355.6 | 343 | 330 |
| 18 x 18 x 12 | 457.0 | 323.8 | 343 | 321 |
| 18 x 18 x 10 | 457.0 | 273.0 | 343 | 308 |
| 18 x 18 x 8 | 457.0 | 219.1 | 343 | 298 |
| 20 x 20 x 20 | 508.0 | 508.0 | 381 | 381 |
| 20 x 20 x 18 | 508.0 | 457.0 | 381 | 368 |
| 20 x 20 x 16 | 508.0 | 406.4 | 381 | 356 |
| 20 x 20 x 14 | 508.0 | 355.6 | 381 | 356 |
| 20 x 20 x 12 | 508.0 | 323.8 | 381 | 346 |
| 20 x 20 x 10 | 508.0 | 273.0 | 381 | 333 |
| 20 x 20 x 8 | 508.0 | 219.1 | 381 | 324 |
| 22 x 22 x 22 | 558.8 | 558.8 | 419 | 419 |
| 22 x 22 x 20 | 559.0 | 508.0 | 419 | 406 |
| 22 x 22 x 18 | 559.0 | 457.0 | 419 | 394 |
| 22 x 22 x 16 | 559.0 | 406.4 | 419 | 381 |
| 22 x 22 x 14 | 559.0 | 355.6 | 419 | 381 |
| 22 x 22 x 12 | 559.0 | 323.8 | 419 | 371 |
| 22 x 22 x 10 | 559.0 | 273.0 | 419 | 359 |
| 24 x 24 x 24 | 609.6 | 609.6 | 432 | 432 |
| 24 x 24 x 22 | 610.0 | 559.0 | 432 | 432 |
| 24 x 24 x 20 | 610.0 | 508.0 | 432 | 432 |
| 24 x 24 x 18 | 610.0 | 457.0 | 432 | 419 |
| 24 x 24 x 16 | 610.0 | 406.4 | 432 | 406 |
| 24 x 24 x 14 | 610.0 | 355.6 | 432 | 406 |
| 24 x 24 x 12 | 610.0 | 323.8 | 432 | 397 |
| 24 x 24 x 10 | 610.0 | 273.0 | 432 | 384 |
| 26 x 26 x 26 | 660.4 | 660.4 | 495 | 495 |
| 26 x 26 x 24 | 660.0 | 610.0 | 495 | 483 |
| 26 x 26 x 22 | 660.0 | 559.0 | 495 | 470 |
| 26 x 26 x 20 | 660.0 | 508.0 | 495 | 457 |
| 26 x 26 x 18 | 660.0 | 457.0 | 495 | 444 |
| 26 x 26 x 16 | 660.0 | 406.4 | 495 | 432 |
| 26 x 26 x 14 | 660.0 | 355.6 | 495 | 432 |
| 26 x 26 x 12 | 660.0 | 323.8 | 495 | 422 |
| 28 x 28 x 28 | 711.2 | 711.2 | 521 | 521 |
| 28 x 28 x 26 | 711.0 | 660.0 | 521 | 521 |
| 28 x 28 x 24 | 711.0 | 610.0 | 521 | 508 |
| 28 x 28 x 22 | 711.0 | 559.0 | 521 | 495 |
| 28 x 28 x 20 | 711.0 | 508.0 | 521 | 483 |
| 28 x 28 x 18 | 711.0 | 457.0 | 521 | 470 |
| 28 x 28 x 16 | 711.0 | 406.4 | 521 | 457 |
| 28 x 28 x 14 | 711.0 | 355.6 | 521 | 457 |
| 28 x 28 x 12 | 711.0 | 323.8 | 521 | 448 |
| 30 x 30 x 30 | 762.0 | 762.0 | 559 | 559 |
| 30 x 30 x 28 | 762.0 | 711.0 | 559 | 546 |
| 30 x 30 x 26 | 762.0 | 660.0 | 559 | 546 |
| 30 x 30 x 24 | 762.0 | 610.0 | 559 | 533 |
| 30 x 30 x 22 | 762.0 | 559.0 | 559 | 521 |
| 30 x 30 x 20 | 762.0 | 508.0 | 559 | 508 |
| 30 x 30 x 18 | 762.0 | 457.0 | 559 | 495 |
| 30 x 30 x 16 | 762.0 | 406.4 | 559 | 483 |
| 30 x 30 x 14 | 762.0 | 355.6 | 559 | 483 |
| 30 x 30 x 12 | 762.0 | 323.8 | 559 | 473 |
| 30 x 30 x 10 | 762.0 | 273.0 | 559 | 460 |
| 32 x 32 x 32 | 812.8 | 812.8 | 597 | 597 |
| 32 x 32 x 30 | 813.0 | 762.0 | 597 | 584 |
| 32 x 32 x 28 | 813.0 | 711.0 | 597 | 572 |
| 32 x 32 x 26 | 813.0 | 660.0 | 597 | 572 |
| 32 x 32 x 24 | 813.0 | 610.0 | 597 | 559 |
| 32 x 32 x 22 | 813.0 | 559.0 | 597 | 546 |
| 32 x 32 x 20 | 813.0 | 508.0 | 597 | 533 |
| 32 x 32 x 18 | 813.0 | 457.0 | 597 | 521 |
| 32 x 32 x 16 | 813.0 | 406.4 | 597 | 508 |
| 32 x 32 x 14 | 813.0 | 355.6 | 597 | 508 |
| 34 x 34 x 34 | 863.6 | 863.6 | 635 | 635 |
| 34 x 34 x 32 | 864.0 | 813.0 | 635 | 622 |
| 34 x 34 x 30 | 864.0 | 762.0 | 635 | 610 |
| 34 x 34 x 28 | 864.0 | 711.0 | 635 | 597 |
| 34 x 34 x 26 | 864.0 | 660.0 | 635 | 597 |
| 34 x 34 x 24 | 864.0 | 610.0 | 635 | 584 |
| 34 x 34 x 22 | 864.0 | 559.0 | 635 | 572 |
| 34 x 34 x 20 | 864.0 | 508.0 | 635 | 559 |
| 34 x 34 x 18 | 864.0 | 457.0 | 635 | 546 |
| 34 x 34 x 16 | 864.0 | 406.4 | 635 | 533 |
| 36 x 36 x 36 | 914.4 | 914.4 | 673 | 673 |
| 36 x 36 x 34 | 914.0 | 864.0 | 673 | 660 |
| 36 x 36 x 32 | 914.0 | 813.0 | 673 | 648 |
| 36 x 36 x 30 | 914.0 | 762.0 | 673 | 635 |
| 36 x 36 x 28 | 914.0 | 711.0 | 673 | 622 |
| 36 x 36 x 26 | 914.0 | 660.0 | 673 | 622 |
| 36 x 36 x 24 | 914.0 | 610.0 | 673 | 610 |
| 36 x 36 x 22 | 914.0 | 559.0 | 673 | 597 |
| 36 x 36 x 20 | 914.0 | 508.0 | 673 | 584 |
| 36 x 36 x 18 | 914.0 | 457.0 | 673 | 572 |
| 36 x 36 x 16 | 914.0 | 406.4 | 673 | 559 |
| 38 x 38 x 38 | 965.2 | 965.2 | 711 | 711 |
| 38 x 38 x 36 | 965.0 | 914.0 | 711 | 711 |
| 38 x 38 x 34 | 965.0 | 864.0 | 711 | 698 |
| 38 x 38 x 32 | 965.0 | 813.0 | 711 | 686 |
| 38 x 38 x 30 | 965.0 | 762.0 | 711 | 673 |
| 38 x 38 x 28 | 965.0 | 711.0 | 711 | 648 |
| 38 x 38 x 26 | 965.0 | 660.0 | 711 | 648 |
| 38 x 38 x 24 | 965.0 | 610.0 | 711 | 635 |
| 38 x 38 x 22 | 965.0 | 559.0 | 711 | 622 |
| 38 x 38 x 20 | 965.0 | 508.0 | 711 | 610 |
| 38 x 38 x 18 | 965.0 | 457.0 | 711 | 597 |
| 40 x 40 x 40 | 1016.0 | 1016.0 | 749 | 749 |
| 40 x 40 x 38 | 1016.0 | 965.0 | 749 | 749 |
| 40 x 40 x 36 | 1016.0 | 914.0 | 749 | 737 |
| 40 x 40 x 34 | 1016.0 | 864.0 | 749 | 724 |
| 40 x 40 x 32 | 1016.0 | 813.0 | 749 | 711 |
| 40 x 40 x 30 | 1016.0 | 762.0 | 749 | 698 |
| 40 x 40 x 28 | 1016.0 | 711.0 | 749 | 673 |
| 40 x 40 x 26 | 1016.0 | 660.0 | 749 | 673 |
| 40 x 40 x 24 | 1016.0 | 610.0 | 749 | 660 |
| 40 x 40 x 22 | 1016.0 | 559.0 | 749 | 648 |
| 40 x 40 x 20 | 1016.0 | 508.0 | 749 | 635 |
| 40 x 40 x 18 | 1016.0 | 457.0 | 749 | 622 |
| 42 x 42 x 42 | 1066.8 | 1066.8 | 762 | 711 |
| 42 x 42 x 40 | 1067.0 | 1016.0 | 762 | 711 |
| 42 x 42 x 38 | 1067.0 | 968.0 | 762 | 711 |
| 42 x 42 x 36 | 1067.0 | 914.0 | 762 | 711 |
| 42 x 42 x 34 | 1067.0 | 864.0 | 762 | 711 |
| 42 x 42 x 32 | 1067.0 | 813.0 | 762 | 711 |
| 42 x 42 x 30 | 1067.0 | 762.0 | 762 | 711 |
| 42 x 42 x 28 | 1067.0 | 711.0 | 762 | 698 |
| 42 x 42 x 26 | 1067.0 | 660.0 | 762 | 698 |
| 42 x 42 x 24 | 1067.0 | 610.0 | 762 | 660 |
| 42 x 42 x 22 | 1067.0 | 559.0 | 762 | 660 |
| 42 x 42 x 20 | 1067.0 | 508.0 | 762 | 660 |
| 42 x 42 x 18 | 1067.0 | 457.0 | 762 | 648 |
| 42 x 42 x 16 | 1067.0 | 406.4 | 762 | 635 |
| 44 x 44 x 44 | 1117.6 | 1117.6 | 813 | 762 |
| 44 x 44 x 42 | 1118.0 | 1067.0 | 813 | 762 |
| 44 x 44 x 40 | 1118.0 | 1016.0 | 813 | 749 |
| 44 x 44 x 38 | 1118.0 | 965.0 | 813 | 737 |
| 44 x 44 x 36 | 1118.0 | 914.0 | 813 | 724 |
| 44 x 44 x 34 | 1118.0 | 864.0 | 813 | 724 |
| 44 x 44 x 32 | 1118.0 | 813.0 | 813 | 711 |
| 44 x 44 x 30 | 1118.0 | 762.0 | 813 | 711 |
| 44 x 44 x 28 | 1118.0 | 711.0 | 813 | 698 |
| 44 x 44 x 26 | 1118.0 | 660.0 | 813 | 698 |
| 44 x 44 x 24 | 1118.0 | 610.0 | 813 | 698 |
| 44 x 44 x 22 | 1118.0 | 559.0 | 813 | 686 |
| 44 x 44 x 20 | 1118.0 | 508.0 | 813 | 686 |
| 46 x 46 x 46 | 1168.4 | 1168.4 | 851 | 800 |
| 46 x 46 x 44 | 1168.0 | 1118.0 | 851 | 800 |
| 46 x 46 x 42 | 1168.0 | 1067.0 | 851 | 787 |
| 46 x 46 x 40 | 1168.0 | 1016.0 | 851 | 775 |
| 46 x 46 x 38 | 1168.0 | 965.0 | 851 | 762 |
| 46 x 46 x 36 | 1168.0 | 914.0 | 851 | 762 |
| 46 x 46 x 34 | 1168.0 | 864.0 | 851 | 749 |
| 46 x 46 x 32 | 1168.0 | 813.0 | 851 | 749 |
| 46 x 46 x 30 | 1168.0 | 762.0 | 851 | 737 |
| 46 x 46 x 28 | 1168.0 | 711.0 | 851 | 737 |
| 46 x 46 x 26 | 1168.0 | 660.0 | 851 | 737 |
| 46 x 46 x 24 | 1168.0 | 610.0 | 851 | 724 |
| 46 x 46 x 22 | 1168.0 | 559.0 | 851 | 724 |
| 48 x 48 x 48 | 1219.2 | 1219.2 | 889 | 838 |
| 48 x 48 x 46 | 1219.0 | 1168.0 | 889 | 838 |
| 48 x 48 x 44 | 1219.0 | 1118.0 | 889 | 838 |
| 48 x 48 x 42 | 1219.0 | 1067.0 | 889 | 813 |
| 48 x 48 x 40 | 1219.0 | 1016.0 | 889 | 813 |
| 48 x 48 x 38 | 1219.0 | 965.0 | 889 | 813 |
| 48 x 48 x 36 | 1219.0 | 914.0 | 889 | 787 |
| 48 x 48 x 34 | 1219.0 | 864.0 | 889 | 787 |
| 48 x 48 x 32 | 1219.0 | 813.0 | 889 | 787 |
| 48 x 48 x 30 | 1219.0 | 762.0 | 889 | 762 |
| 48 x 48 x 28 | 1219.0 | 711.0 | 889 | 762 |
| 48 x 48 x 26 | 1219.0 | 660.0 | 889 | 762 |
| 48 x 48 x 24 | 1219.0 | 610.0 | 889 | 737 |
| 48 x 48 x 22 | 1219.0 | 559.0 | 889 | 737 |
| Manufacturer/Exporter | : | India |
| Dimension Standards | : | ASME/ANSI B16.9, MSS-SP-43 |
Carbon, Alloy, Stainless Steel Equal / Reducer Tee
Domax Manufacturer is a trusted producer, exporter and supplier of Reducing and Straight Tees, available in multiple shapes, sizes and specifications. These fittings, also known as 3-way pipe fittings, are designed in the shape of the letter “T”, allowing two horizontal pipes and one vertical pipe to connect for smooth fluid flow, direction control and mixing. Tees are an essential component in piping networks that handle two-phase fluid movement. They are mainly categorized into Equal Tees and Reducing (Unequal) Tees.
An Equal Tee has a branch outlet that matches the size of the main pipe, whereas a Reducing Tee has a smaller branch connection compared to the header. Tee dimensions are denoted as End × End × Center. For example, a tee with 4" on both ends and 2" at the center would be specified as 4" × 4" × 2".
Domax Manufacturer supplies tees in Stainless Steel, Alloy Steel, and Carbon Steel, along with Lateral Tees and Y-Pieces in materials such as Nickel Alloys, Duplex, and Cupro-Nickel. Our products are widely used across major industries including Nuclear, Thermal and Hydel Power Plants, Oil & Gas, Refineries, Petrochemicals, Fertilizers, Mining, Construction, Steel Manufacturing, Shipbuilding, Paper Production, Pharmaceuticals, and various Pipeline Projects.
Buttweld Pipe Tee Production Range – Equal Tee, Unequal Tee (Reducing Tee)
| Manufacturing Range (OD) | : | Seamless Pipe Tee (2"~24"), Welded / Fabricated Pipe Tee (8"~96") |
| Types | : | Equal Tees, Reducing Tees, Lateral Tees, Y-Piece, Cross, Barred Tee & Flow Tee |
| Wall Thickness | : | 4mm – 80mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Value Added Services | : | Cladding, Hot Dipped Galvanizing, Epoxy & FBE Coating, Painting, Electro Polish, Sand Blasting, End Caps... |
| Production Grades | : | Stainless Steel, Alloy Steel, Duplex & Super Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing Standards – Pipe Tee
| ASME | : | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN | : | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN | : | EN10253-1, EN10253-2 |
| ASTM A403 – ASME SA403 | : | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | : | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | : | Buttwelding Ends ASME B16.28 – 'Wrought Steel Short Radius Tees and Buttwelding Returns' |
| MSS SP-43 | : | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Pipe Tee Material Grades
| Stainless Steel Tee | : | ASTM A403 WP Gr. 304, 304L, 304H, 309, 310, 316, 316L, 316Ti, 317L, 321, 347, 347H, 904L |
| Carbon Steel Tee | : | ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Tee | : | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Tee | : | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Duplex Steel Tee | : | ASTM A815, ASME SA 815 UNS 31803, UNS 32205 (Dual Certified). |
| Nickel Alloy Tee | : | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276) |
Marking & Packing
Products from Domax Manufacturer are packed with utmost care to prevent any damage during storage or transportation. For export shipments, we use standard export-grade packaging in fumigated wooden boxes. Each product is clearly labeled with its Grade, Lot Number, Size, Degree, and our trademark. Custom markings can also be provided upon request.
Quality Assurance
At Domax Manufacturer, every product undergoes rigorous quality checks at every stage—from raw material procurement to final dispatch. Each item is verified according to approved or standard ITPs to ensure full compliance with ASTM, ASME, MSS, DIN, and EN specifications. We also provide inspections through certified inspection agencies (including dual inspection) to validate dimensions and quality in line with project requirements.
Test Certificates: Manufacturer Test Certificate as per EN 10204 3.1 & 3.2, Raw Material Certificate, 100% Radiography Test Report, and Third-Party Inspection Report.
