Stub End
Stub End
×

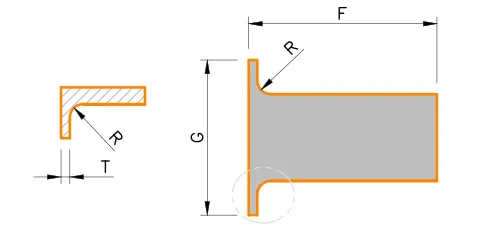

STUB END TECHNICAL DETAILS
| DN/NPS (Inch)DN/NPS (Inch) | OD in MM | Length (F) | Radius of Fillet (R)Radius of Fillet (R) | Diameter of Lap, (G)Diameter of Lap, (G) | |
|---|---|---|---|---|---|
| Long Pattern | Short Pattern | ||||
| 1/8 | 6 | - | - | - | - |
| 1/4 | 8 | - | - | - | - |
| 3/8 | 10 | - | - | - | - |
| 1/2 | 15 | 76 | 51 | 3 | 35 |
| 3/4 | 20 | 76 | 51 | 3 | 43 |
| 1 | 25 | 102 | 51 | 3 | 51 |
| 11/4 | 32 | 102 | 51 | 5 | 64 |
| 11/2 | 40 | 102 | 51 | 6 | 73 |
| 2 | 50 | 152 | 64 | 8 | 92 |
| 21/2 | 65 | 152 | 64 | 8 | 105 |
| 3 | 80 | 152 | 64 | 10 | 127 |
| 31/2 | 90 | 152 | 76 | 10 | 140 |
| 4 | 100 | 152 | 76 | 11 | 157 |
| 5 | 125 | 203 | 76 | 11 | 186 |
| 6 | 150 | 203 | 89 | 13 | 216 |
| 8 | 200 | 203 | 102 | 13 | 270 |
| 10 | 250 | 254 | 127 | 13 | 324 |
| 12 | 300 | 254 | 152 | 13 | 381 |
| 14 | 350 | 305 | 152 | 13 | 413 |
| 16 | 400 | 305 | 152 | 13 | 470 |
| 18 | 450 | 305 | 152 | 13 | 533 |
| 20 | 500 | 305 | 152 | 13 | 584 |
| 22 | 550 | 305 | 152 | 13 | 641 |
| 24 | 600 | 305 | 152 | 13 | 692 |
Notes:
- Length E applies for thickness not exceeding that given in column " Limiting Wall Thickness for Length E".
- Length E1 applies for thickness greater that that given in cluomn "Limiting Wall Thickness" for NPS 24 and smaller. and Purchaser For NPS 26 and larger, length E1 shall be agreement between the Manufacturer.
| Manufacturer/Exporter | : | India |
| Dimension Standards | : | ASME/ANSI B16.9, MSS-SP-43 |
Domax Manufacturer is a trusted India-based producer, exporter, and supplier of premium-quality, high-performance stub end (lap joint) fittings. We provide products in a wide range of material grades, all manufactured in accordance with international dimensional standards. Our stub ends are available in both standard and customized ANSI dimensions, with options in seamless and lap joint (welded) forms across stainless steel, carbon steel, alloy steel, and nickel alloy materials.
Stub ends serve as an alternative to fixed welded flanges, especially where a rotating backup flange is required. They are typically paired with standard lap joint flanges for greater flexibility during installation and maintenance.
At Domax Manufacturer, we deliver stub ends suitable for diverse industrial applications, including nuclear, thermal, and hydel power plants, captive power units, oil & gas industries, refineries, petrochemical complexes, fertilizer and mineral units, mining, construction, steel production, shipbuilding, paper mills, pharmaceutical plants, and various pipeline projects.
Stub End/Lap Joint Production Range
| Outside Diameter | : | 2" – 48" |
| Wall Thickness | : | 4mm – 80mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Value Added Services | : | Cladding, Hot Dipped Galvanizing, Epoxy & FBE Coating, Painting, Electro Polish, Sand Blasting, End Caps... |
| Production Grades | : | Stainless Steel, Alloy Steel, Duplex & Super Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing Standards
| ASME | : | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN | : | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN | : | EN10253-1, EN10253-2 |
| ASTM A403 – ASME SA403 | : | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | : | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | : | Buttwelding Ends |
| MSS SP-43 | : | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Stub Ends Material Grades
| Stainless Steel Stub End | : | ASTM A403 WP Gr. 304, 304L, 304H, 309, 310, 316, 316L, 316Ti, 317L, 321, 347, 347H, 904L |
| Carbon Steel Stub End | : | ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Stub End | : | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Stub End | : | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Duplex Steel Stub End | : | ASTM A815, ASME SA 815 UNS 31803, UNS 32205 (Dual Certified). |
| Nickel Alloy Stub End | : | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276) |
Marking & Packing
At Domax Manufacturer, every product is securely packed to prevent any damage during storage or transportation. For export shipments, we use standard export-grade, fumigated wooden boxes to ensure maximum safety. Each item is clearly labeled with its Grade, Lot Number, Size, Degree, and our official trademark. Custom labeling and marking are also available upon request.
Quality Assurance
At Domax Manufacturer, we maintain rigorous quality checks at every stage of production — from sourcing raw materials to the final dispatch. Each product is inspected in line with approved or standard ITPs to ensure full compliance with international codes and specifications, including ASTM, ASME, MSS, DIN, and EN standards. We also provide inspections through certified third-party agencies (Dual Inspection) to validate all dimensions and quality requirements as per project specifications.
Test Certificates: Manufacturer Test Certificate as per EN 10204 3.1 & 3.2, Raw Material Certificate, 100% Radiography Test Report, and Third-Party Inspection Report.
