Pipe Elbow	:	Long Radius (LR) Elbow, Short Radius (SR) Elbow
Manufacturer/Exporter	:	India
Dimension Standards	:	ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43
Angle	:	90° Elbow, 45° Elbow, 180° Elbow

An elbow is a vital pipe fitting used to join two pipe sections while changing the flow direction, most commonly at 90°, 45°, or 180°. These fittings are also known as bends and are produced in various materials, including Stainless Steel, Carbon Steel, Alloy Steel, Nickel Alloys, Duplex, and Cupro Nickel.

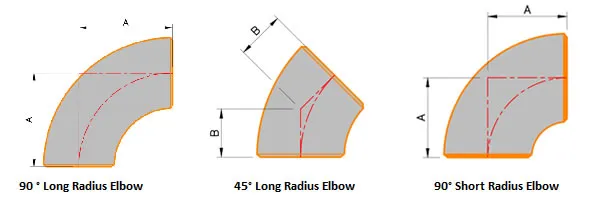

Domax Manufacturer produces a wide range of elbows such as 90° and 45° types. The 90° elbows are available in both Short Radius (SR) and Long Radius (LR) designs, while 45° elbows are generally manufactured in the Long Radius form. LR elbows have a center-to-end distance equal to 1.5 times the pipe size (R=1.5D), whereas SR elbows have a radius equal to the pipe size itself (R=1.0D). Short radius elbows are ideal for compact installations, while long radius elbows are preferred where smoother flow and lower pressure drop are required. We also offer elbows in customized angles like 60°, 100°, 120°, or 150°.

The ends of these fittings can be prepared for butt-welding, threading (usually female), or other connection methods. When each end has a different size, the product is known as a reducing or reducer elbow.

Domax Manufacturer is a trusted producer and supplier of long radius elbows, short radius elbows, stainless steel elbows, duplex elbows, carbon steel elbows, and fabricated elbows. Our products are widely used across multiple sectors, including Nuclear, Thermal, and Hydel Power Plants, Oil & Gas, Refineries, Petrochemicals, Fertilizers, Mining, Construction, Steel Plants, Shipbuilding, Paper Mills, Pharmaceuticals, and various pipeline infrastructure projects.
