Reducer
Reducer
×

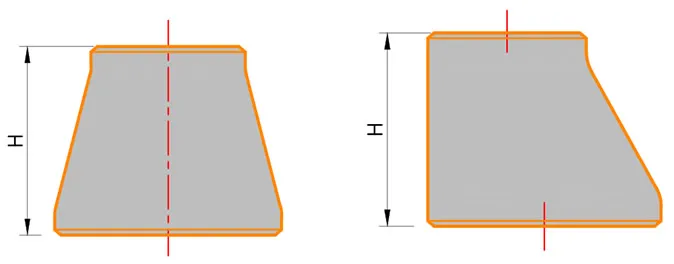

REDUCER TECHNICAL DETAILS
| DN / NPS (Inch) | NPS in MM | End to End Height (H) in MM |
|---|---|---|
| 1/8 | 6 | - |
| ¼ | 8 | - |
| ⅜ | 10 | - |
| ½ | 15 | - |
| ¾ | 20 | 38 |
| 1 | 25 | 51 |
| 1¼ | 32 | 51 |
| 1½ | 40 | 64 |
| 2 | 50 | 76 |
| 2½ | 65 | 89 |
| 3 | 80 | 89 |
| 3½ | 90 | 102 |
| 4 | 100 | 102 |
| 5 | 125 | 127 |
| 6 | 150 | 140 |
| 8 | 200 | 152 |
| 10 | 250 | 178 |
| 12 | 300 | 203 |
| 14 | 350 | 330 |
| 16 | 400 | 356 |
| 18 | 450 | 381 |
| 20 | 500 | 508 |
| 22 | 550 | 508 |
| 24 | 600 | 508 |
| 26 | 650 | 610 |
| 28 | 700 | 610 |
| 30 | 750 | 610 |
| 32 | 800 | 610 |
| 34 | 850 | 610 |
| 36 | 900 | 610 |
| 38 | 950 | 610 |
| 40 | 1000 | 610 |
| 42 | 1050 | 610 |
| 44 | 1100 | 610 |
| 46 | 1150 | 711 |
| 48 | 1200 | 711 |
| Pipe Reducer | : | Eccentric Reducer, Concentric Reducer |
| Manufacturer/Exporter | : | India |
| Dimension Standards | : | ASME/ANSI B16.9, MSS-SP-43 |
Domax Manufacturer is a trusted name in producing, exporting, and supplying premium-grade steel reducers available in a wide range of shapes and dimensions. Every product is crafted in accordance with ASTM, ASME, DIN and other global standards, as well as tailored specifications requested by our clients.
Our product portfolio includes stainless steel, carbon steel, alloy steel and duplex steel reducers. A reducer is an essential pipe fitting used to join pipes or tubes of varying diameters, ensuring smooth size transition in any piping system. These fittings are generally available in two main types: concentric reducers and eccentric reducers.
As a quality-driven manufacturer, Domax Manufacturer delivers reliable reducers in stainless steel, alloy steel, duplex and carbon steel. We cater to a diverse range of industries such as nuclear, thermal and hydel power plants, oil & gas, refineries, petrochemicals, fertilizers, minerals, mining, construction, steel manufacturing, shipbuilding, pharmaceuticals, paper production, and major pipeline infrastructure projects.
Buttweld Pipe Reducer Production Range – Concentric & Excentric
| Manufacturing Range (OD) | : | Seamless Pipe Reducer (2"~24"), Welded / Fabricated Pipe Reducer (8"~96") |
| Types | : | Concentric Reducers, Eccentric Reducers |
| Wall Thickness | : | 4mm – 80mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Value Added Services | : | Cladding, Hot Dipped Galvanizing, Epoxy & FBE Coating, Painting, Electro Polish, Sand Blasting, End Caps... |
| Production Grades | : | Stainless Steel, Alloy Steel, Duplex & Super Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing Standards – Pipe Tee
| ASME | : | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN | : | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN | : | EN10253-1, EN10253-2 |
| ASTM A403 – ASME SA403 | : | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | : | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | : | Buttwelding Ends |
| MSS SP-43 | : | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Pipe Reducers Material Grades
| Stainless Steel Reducers | : | ASTM A403 WP Gr. 304, 304L, 304H, 309, 310, 316, 316L, 316Ti, 317L, 321, 347, 347H, 904L |
| Carbon Steel Reducers | : | ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Reducers | : | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Reducers | : | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Duplex Steel Reducers | : | ASTM A815, ASME SA 815 UNS 31803, UNS 32205 (Dual Certified). |
| Nickel Alloy Reducers | : | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276) |
Marking & Packing
Domax Manufacturer ensures every product is securely packed to prevent any damage during storage or transportation. For export shipments, we use standard export-grade, fumigated wooden boxes. Each item is clearly labeled with its Grade, Lot Number, Size, Degree, and our trademark. Custom product markings are also available upon request.
Quality Assurance
At Domax Manufacturer, every product undergoes rigorous quality checks at all stages of production—from sourcing raw materials to final dispatch. Each item is inspected in line with approved or standard ITPs to ensure full compliance with ASTM, ASME, MSS, DIN, and EN codes and standards. We also provide inspections by certified agencies (including dual inspection) to verify dimensions and quality as required for specific project standards.
Test Certificates: Manufacturer Test Certificate as per EN 10204 3.1 & 3.2, Raw Material Certificate, 100% Radiography Test Report, and Third-Party Inspection Report.
